Screwable earth rod
Complete system for the installation of drilled earthing systems up to 99 m by means of core drilling according to the requirements of very low earthing resistances, e.g. 1–2 ohm in pipeline applications or wherever earth rods cannot be driven in.
Earth electrode with M16 female and male thread as per the requirement of DIN EN 62561-2. With device for suspension over borehole.
Earth electrode with M16 female and male thread as per the requirement of DIN EN 62561-2. With device for suspension over borehole.
- Tested system as per DIN EN 62561-2
- Variable earth electrode lengths of 3.0 m / 1.5 m & 0.5 m for optimum installation with drill crane
- Time savings through quick connection and insertion technology
- Comprehensive accessories for installation, sealing and connections; e.g. to decoupling device
Starter kit

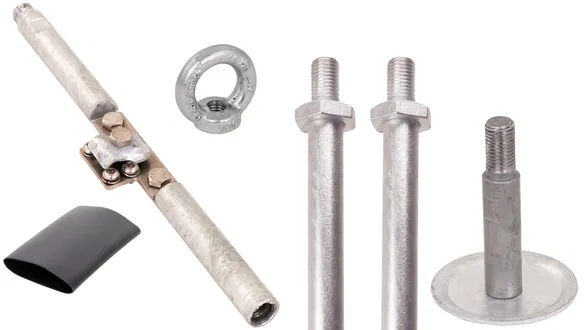

Screwable earth rod starter kit
1x used for each drill hole, consisting of
1x connector L 320 mm (part no. 621 092)
2x screwable earth rod, L 500 mm (part no. 621 050)
1x foot piece with flange Ø80 mm (part no. 621 091)
1x M16 ring nut (part no. 621 097)
1x heat-shrinkable sleeve L 140 mm (part no. 621 096)
1x used for each drill hole, consisting of
1x connector L 320 mm (part no. 621 092)
2x screwable earth rod, L 500 mm (part no. 621 050)
1x foot piece with flange Ø80 mm (part no. 621 091)
1x M16 ring nut (part no. 621 097)
1x heat-shrinkable sleeve L 140 mm (part no. 621 096)
Art.-Nr. 621090
SET STARTER KIT TE 20 M16 STTZN
New
item

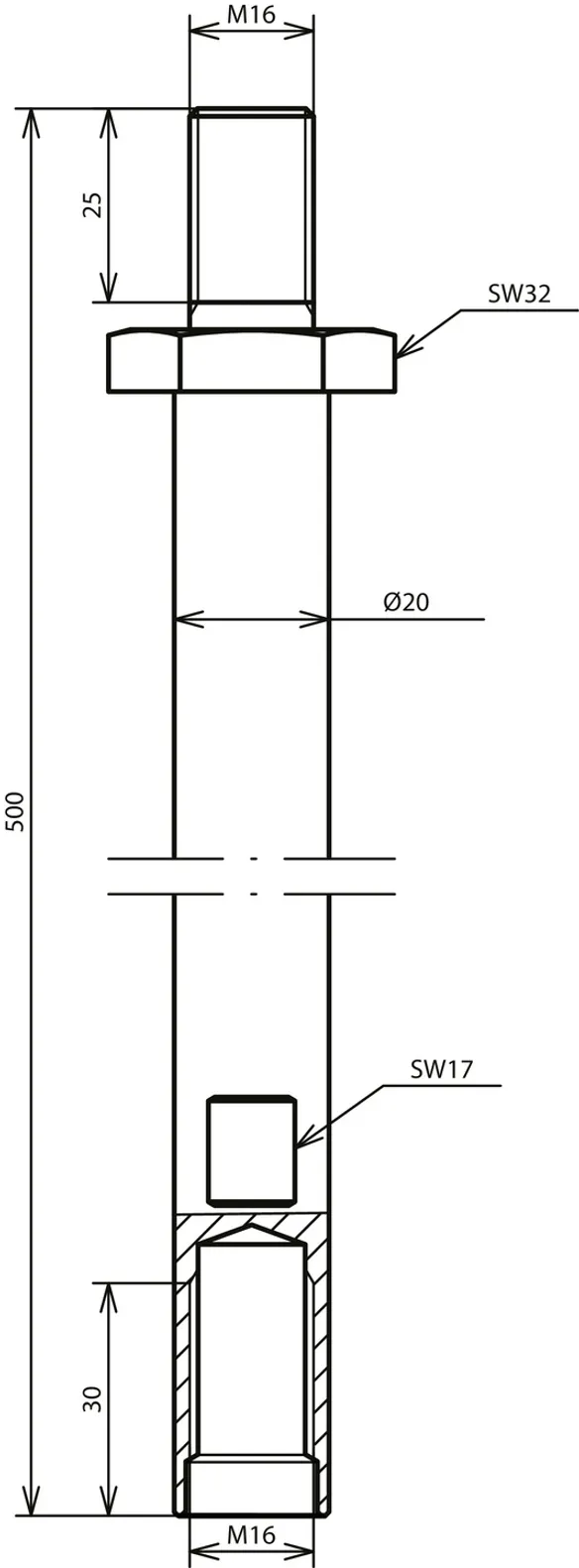

Earth rod

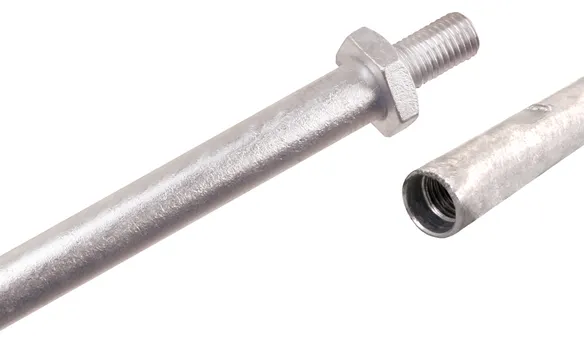

Art.-Nr. 621050
TE 20 500 M16 STTZN
New
item
Earth rod
Art.-Nr. 621150
TE 20 1500 M16 STTZN
New
item

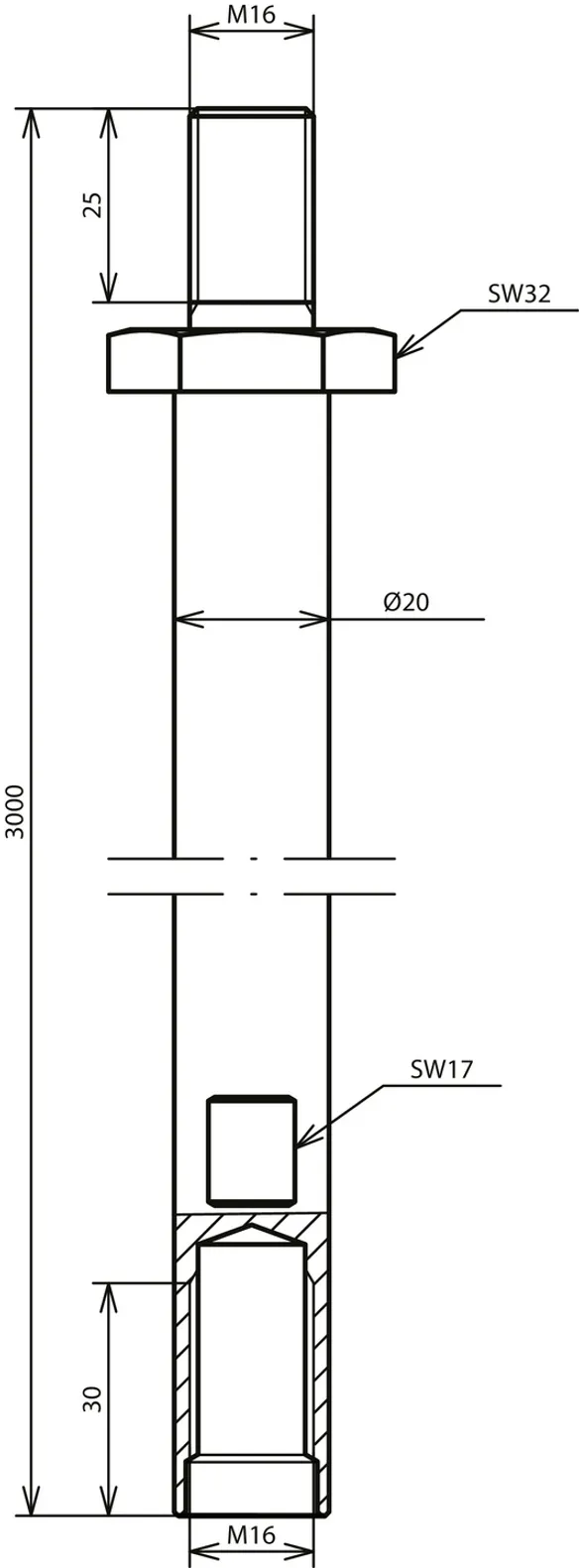

Earth rod
Art.-Nr. 621300
TE 20 3000 M16 STTZN
New
item

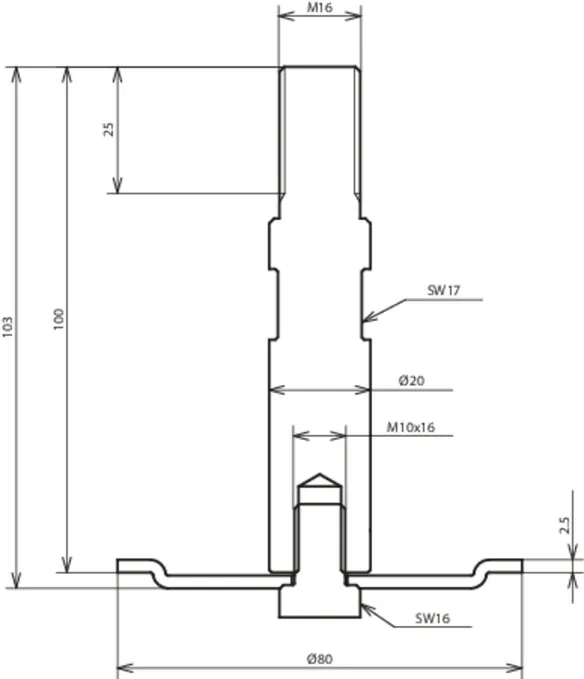

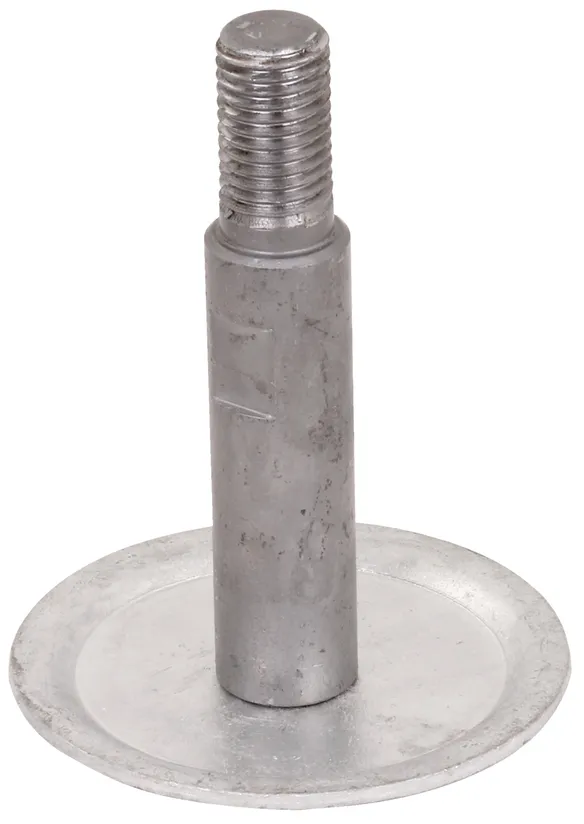

Foot piece
Art.-Nr. 621091
FS TE 20 100 M16 FP80 STTZN
New
item

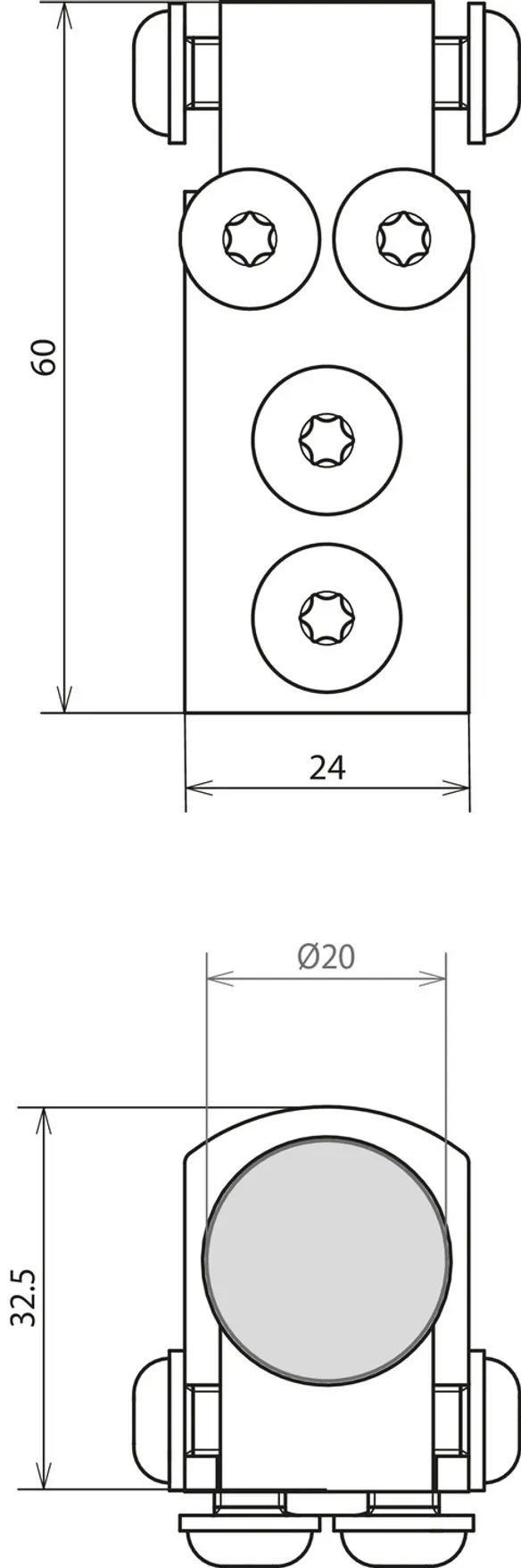

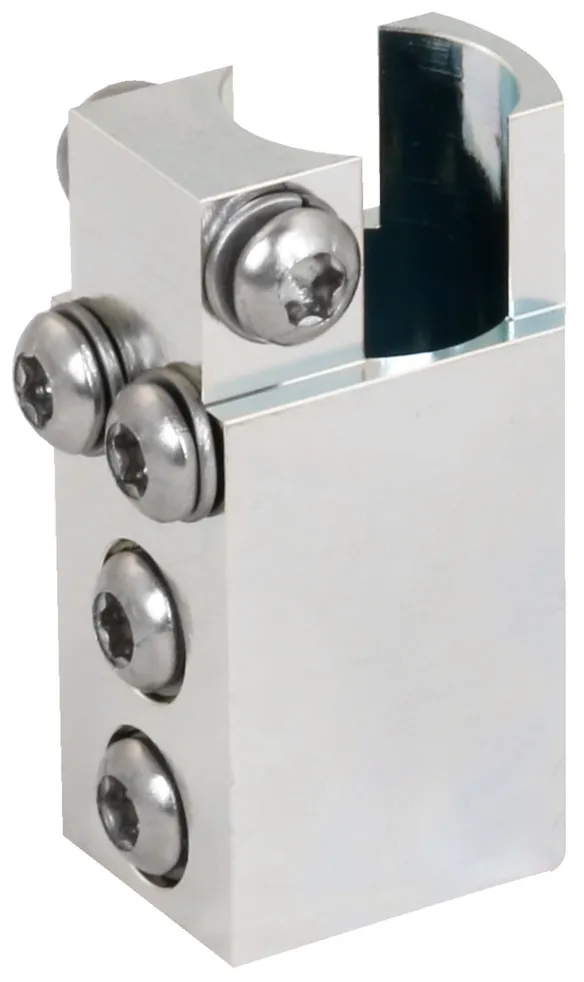

Connection clamp
Connection clamp for easy contacting of the screwable earth rod with a decoupling device even with the earth electrodes sawn off to the desired height.
Art.-Nr. 621094
AK TE 20 STGALZN
New
item

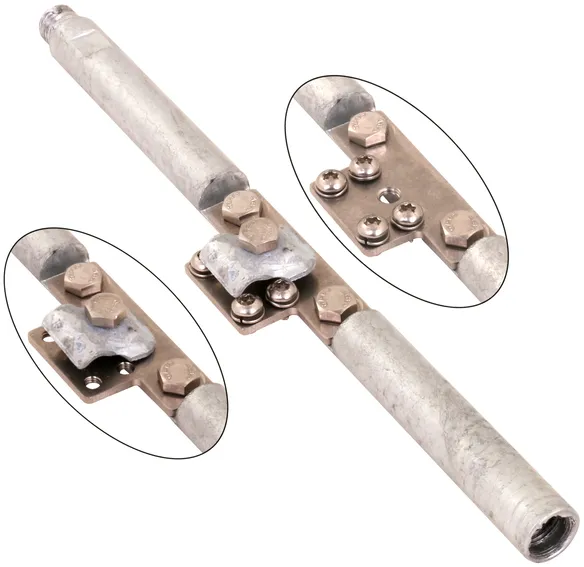

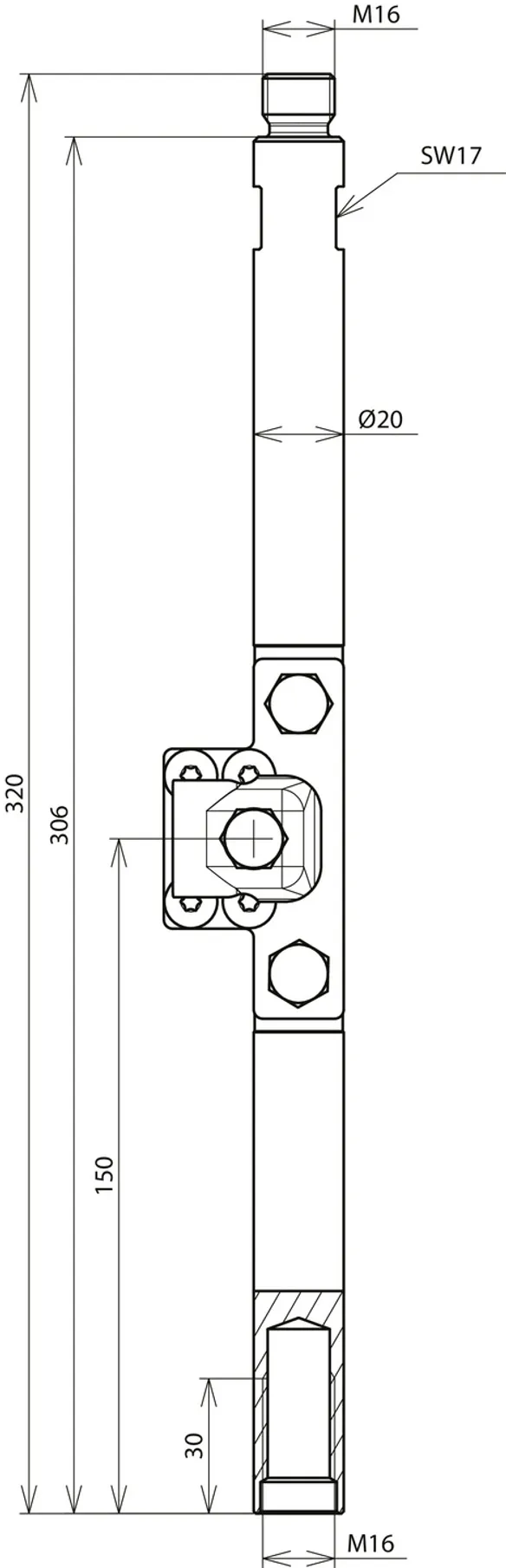

Connector
Art.-Nr. 621092
AS TE 20 320 M16 STTZN
New
item
Accessories

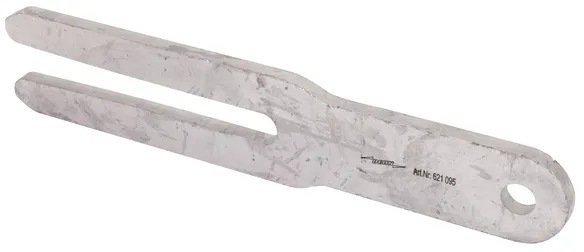

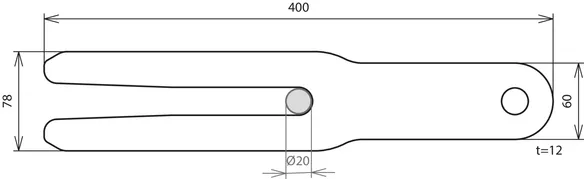

The retaining fork is used in conjunction with a support to safely place the earth electrode above the borehole.
Art.-Nr. 621095
HG TE 20 STTZN
New
item
Accessories
Art.-Nr. 621097
RM M16 STTZN
New
item
Accessories

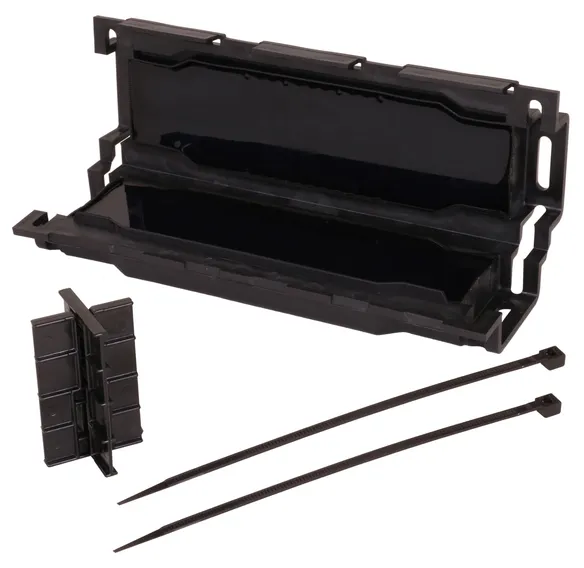

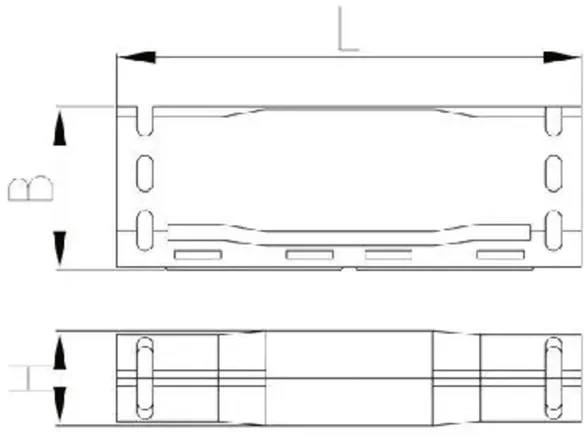

Gel connecting sleeve for screwable earth rod for permanent protection of the connecting cables of connector (part no. 621 092) and connection clamp (part no. 621 094) against the ingress of water or moisture.
Art.-Nr. 621093
VM EASY 5 TE M16
New
item

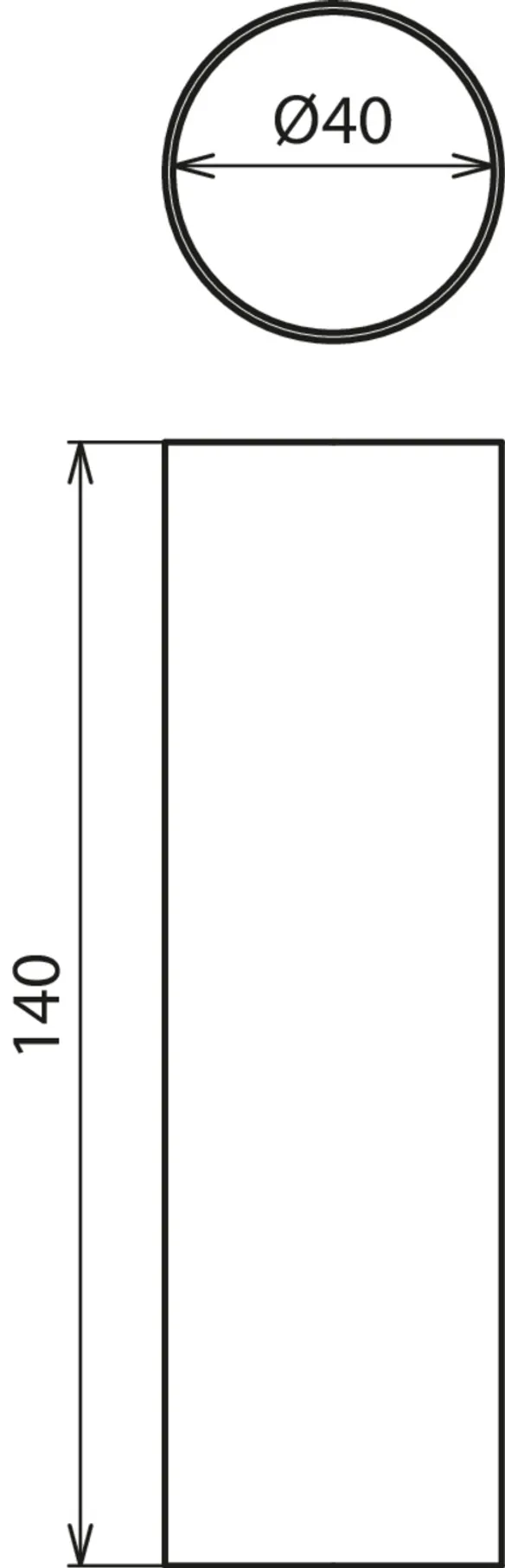

Accessories
Art.-Nr. 621096

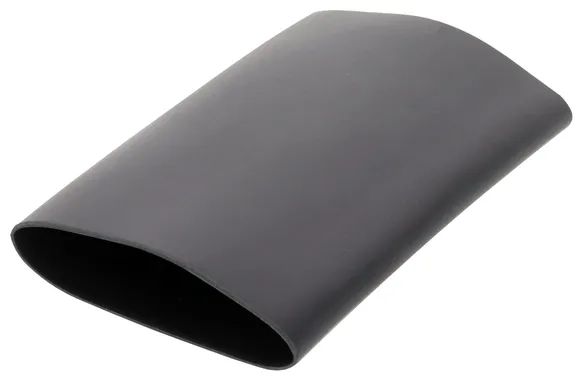

WSS KL D40 L140
New
item
