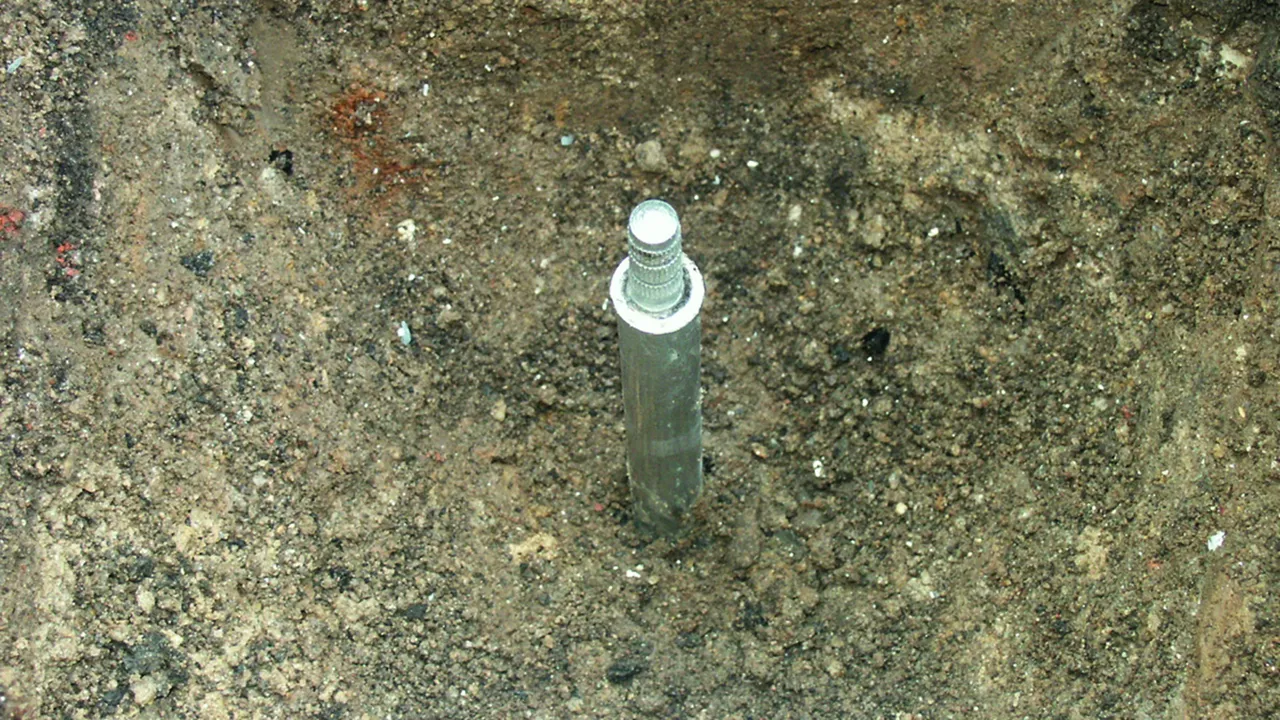

Earth Rods
For setting up earthing systems for down conductors or transformer stations.
Features:
Features:
- No thickening of the cross-section at the coupling joint
- Self-locking coupling
- Corrosion resistance
- Easier storage and transport
- Universal use according to local soil conditions
- Constant resistance values

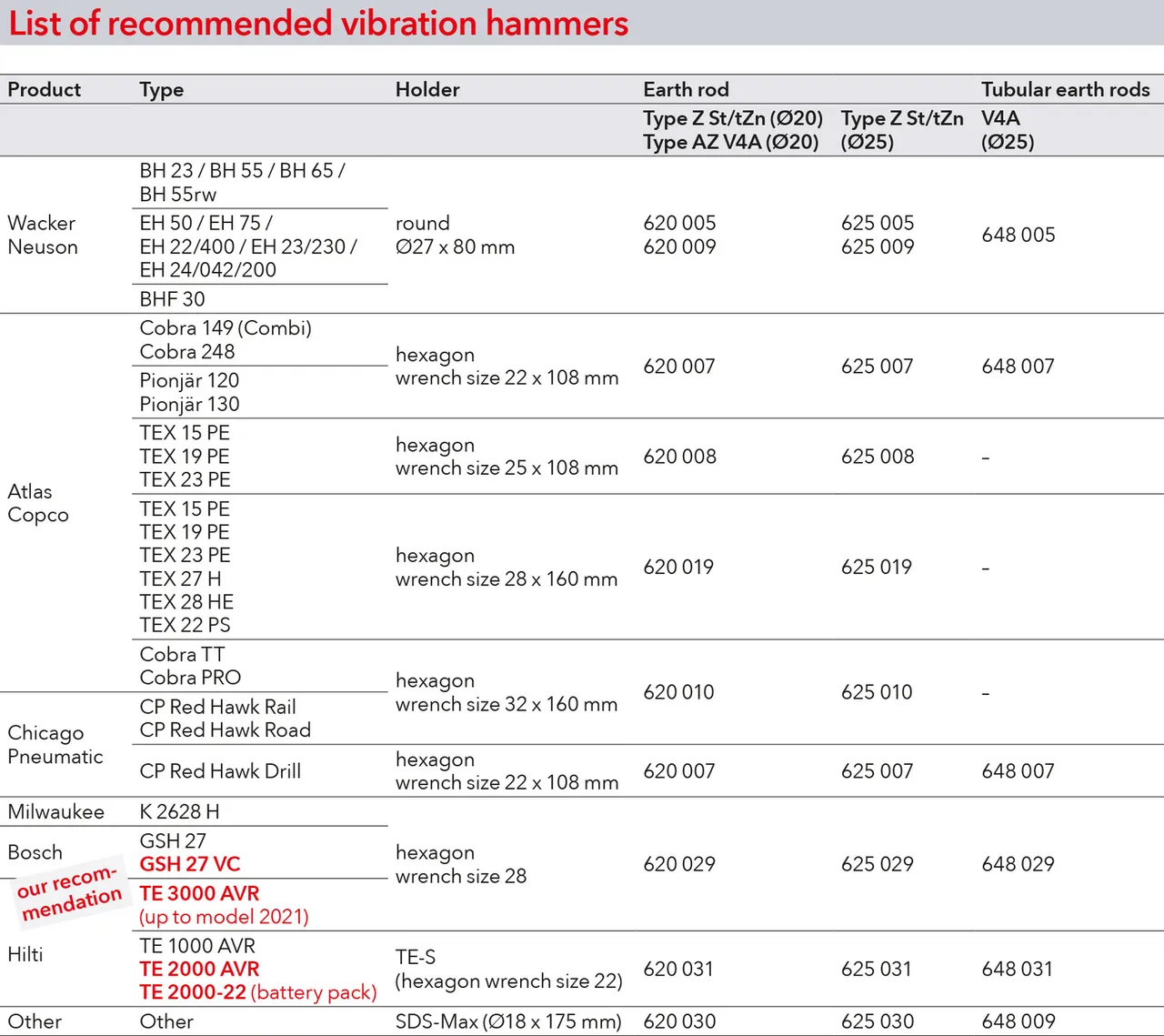

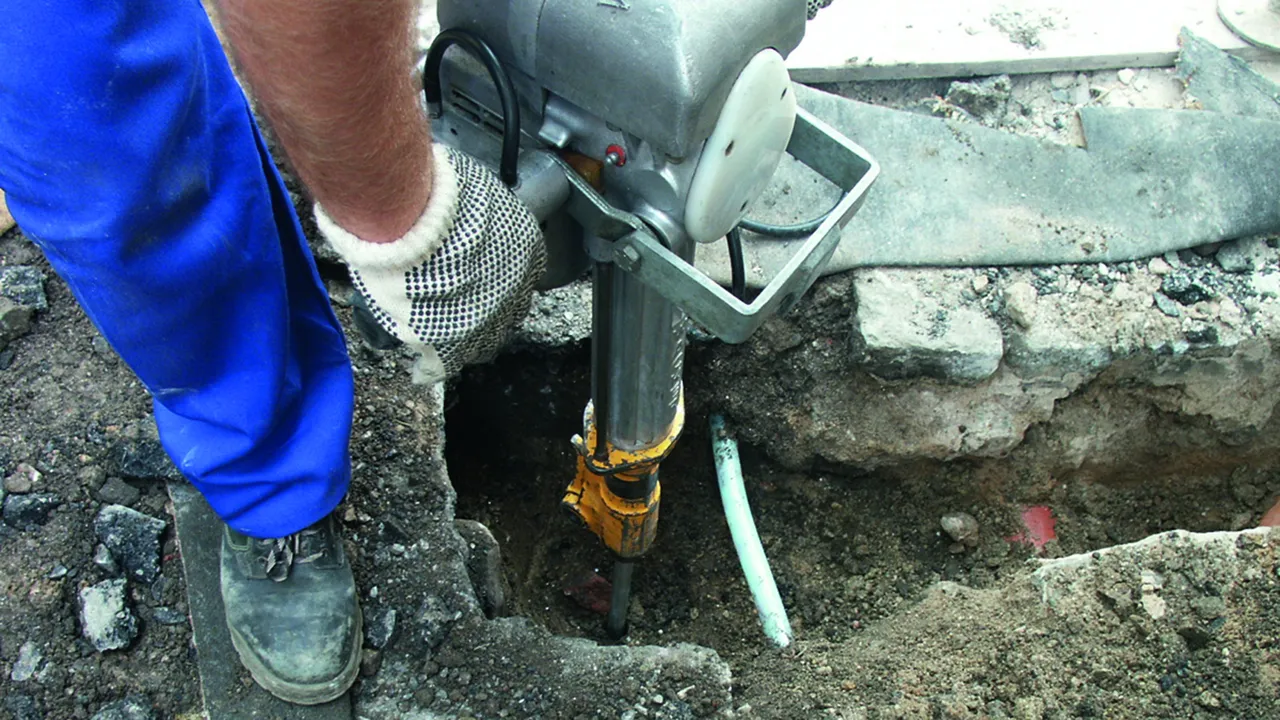

- Easily driven in with a vibration hammer

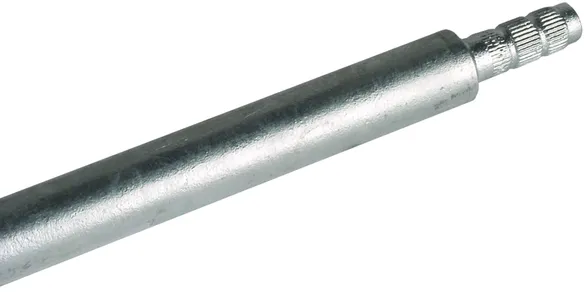

Type Z
Part No. 620101
TE 20 1000 Z STTZN
item
Type Z
Part No. 620151
TE 20 1500 Z STTZN
item
Type Z
Part No. 625101
TE 25 1000 Z STTZN
item
Type Z
Part No. 625151
TE 25 1500 Z STTZN
item

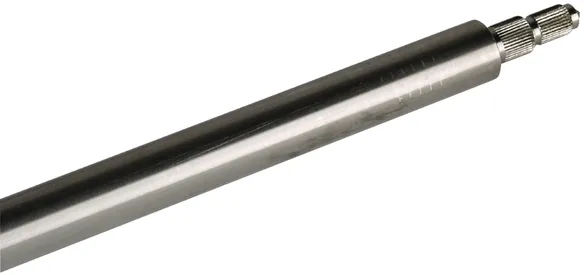

Type AZ
Part No. 620903
TE 20 1000 AZ V4A
item
Type AZ
Part No. 620902
TE 20 1500 AZ V4A
item

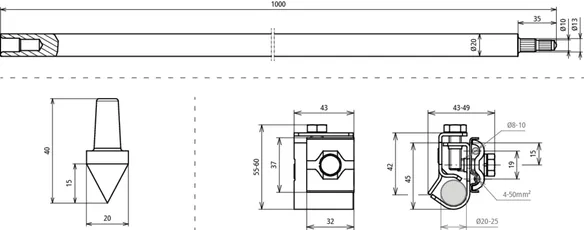

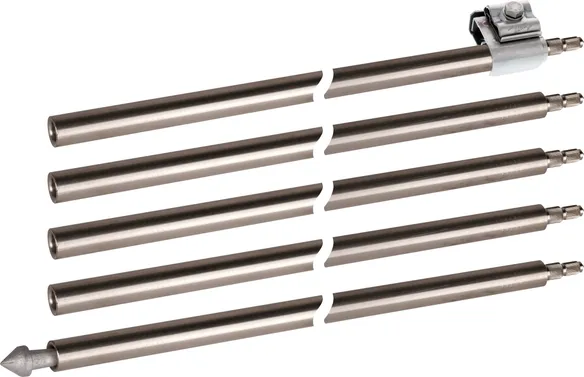

Tiefenerder Set D18 014
DEHN earth rod set D18 014, sectional, with offset knurled pin and borehole, Ø20 mm. Consisting of:
*) For exact assignment, see test certificate.
- 5x earth rod 1 m (part no. 620 903)
- 1x driving spike (part no. 620 001)
- 1x connection clamp (part no. 540 121)
*) For exact assignment, see test certificate.
Part No. D18014
D18014 5XTE D20 1XAK 8.10 1XSSP
item
